China on the Moon, a History of Chinese Lunar Missions in Pictures.

Humanity hasn’t returned samples from the moon since 1976.

Chang'e 5 lunar sample-return spacecraft
Chang’e 5 lunar sample-return spacecraft rolled out to its pad on Tuesday (Nov. 17)

China’s most ambitious moon mission to date is on the pad at Wenchang Space Launch Centre in Hainan ahead of its planned launch next week.

A heavy-lift Long March 5 rocket topped with the robotic Chang’e 5 lunar sample-return spacecraft rolled out to its pad on Tuesday (Nov. 17).

Chang’e 5 is scheduled to lift off on Nov 24th according to NASA, (Official Chinese sources have only said that the launch will occur in “late November”)

The 18,100-lb. (8,200 kilograms) spacecraft, which consists of four modules, will then make its way to the moon.

China's Yutu 2 rover explores the far side of the moon shortly after its Jan. 2, 2019, touchdown
China’s Yutu 2 rover explores the far side of the moon shortly after its Jan. 2, 2019, touchdown

Only 10 years after China sent its first lunar spacecraft on an orbital mission, the nation accomplished something nobody has managed to do before: place a lander, Chang’e 4, on the far side of the moon.

Chang’e 1

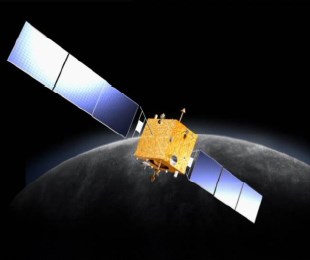

Chang'e 1
Chang’e 1

Chang’e 1 launched in October 2007 on a 16-month mission to map the moon. The spacecraft studied the lunar surface, analysed the composition and depth of the materials there, and also looked at the surrounding environment. The mission fulfilled all of its objectives and controllers deliberately crashed the spacecraft onto the moon on March 2, 2009.

Chang’e 2

Chang’e 2 returned a high-resolution map of the entire moon’s surface

Chang’e 2, the second Chinese lunar mission, launched for Earth’s nearest close neighbour on Oct. 1st, 2010. It returned a high-resolution map of the entire moon’s surface and took close-up images of the Bay of Rainbows, where mission planners at the time suggested they might put down the country’s first lander. Chang’e-2 left the moon’s neighbourhood in April 2012 to fly by the asteroid 4179 Toutatis, which it reached in December 2012.

Hi-res-map-of-moon
complete map of the moon taken by China’s Chang’e 2

This complete high-resolution map of the moon taken by China’s Chang’e 2 lunar orbiter was unveiled on Feb. 6, 2012.

Toutais-asteroid
Toutais asteroid

4179 Toutatis, provisional designation 1989 AC, is an elongated, stony asteroid and slow rotator,

Chang’e 3

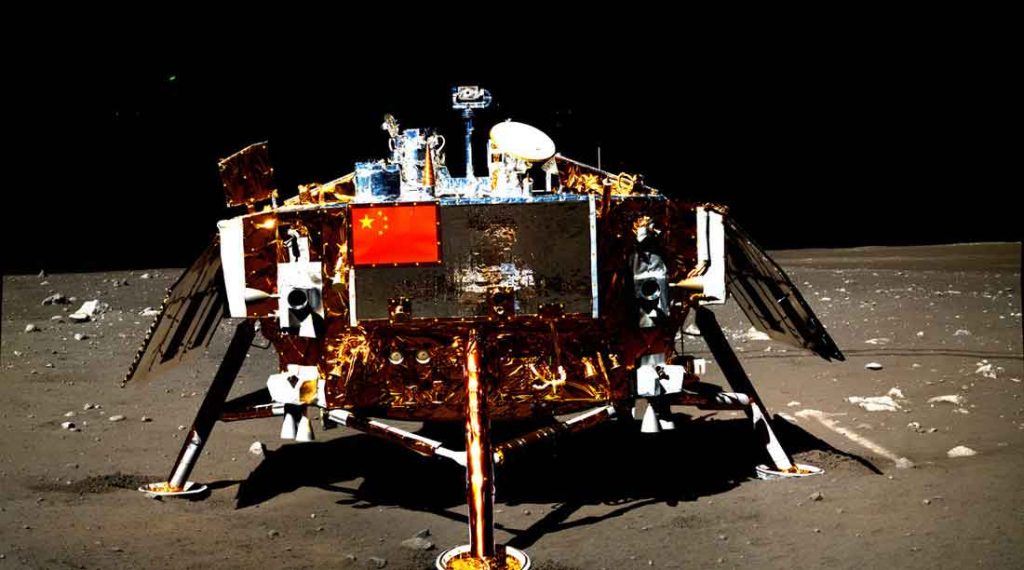

Chang'e-3
Chang’e 3

Chang’e 3 was the third Chinese lunar mission and the first to land on the surface. It made a safe landing on the moon on Dec 14th, 2013, at Mare Imbrium, on a site later called Guang Han Gong (Moon Palace).

Chang’e 3 took images of the night sky from its perch on the surface, using an optical telescope, and it sent back imagery of the surrounding area as well as of its rover, Yutu. It also discovered a new kind of basaltic rock in 2015.

Yutu rover

China's Yutu 2 rover explores the far side of the moon shortly after its Jan. 2, 2019, touchdown
China’s Yutu 2 rover explores the far side of the moon shortly after its Jan. 2, 2019, touchdown

Chang’e 3 is most famous for the deployment of its rover, Yutu, the first one to deploy on the moon since 1976. After heading out to the surface on Dec 14th, 2013, Yutu took many images and panoramas that were sent back to Earth, showing the surrounding environment. The rover moved well for a few days in December; by January 2014, after it emerged from the sleep mode it had entered to survive the long lunar night, it appears all drives had stopped. But the rover kept transmitting data until 2015.

Chang’e 5 Test 1

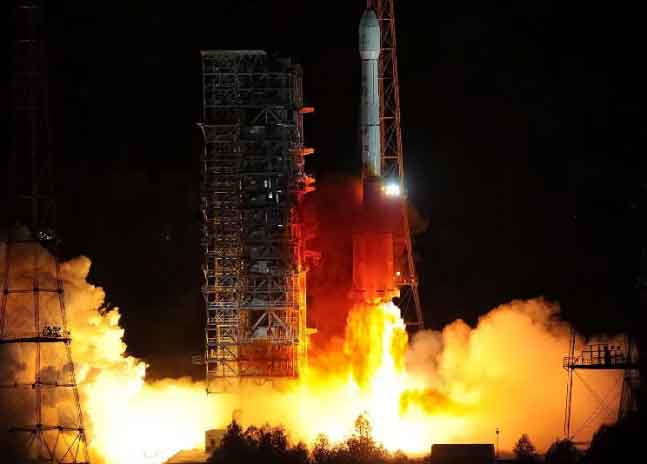

Chang'e-5-test-1-mission
Chang’e 5 test 1 mission

Chang’e 5 Test 1 In October 2014, China shifted tracks and launched its first round-trip moon journey, dubbed Chang’e 5 Test 1 mission. The mission was tested the performance of spacecraft items such as its heat shield, guidance, navigation and control. Once analysed, this information was to be included in future lunar-landing missions. The spacecraft also carried some smaller satellites from LuxSpace in Luxembourg and Pocket Spacecraft in the United Kingdom.

Queqiao Relay Satellite for Chang’e 4

relay satelite

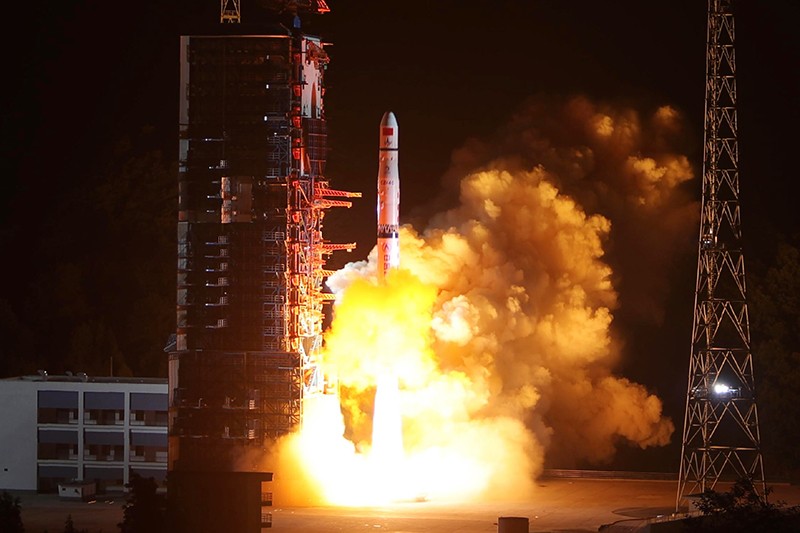

The Queqiao relay satellite launched for the moon on May 20, 2018

Since landing on the far side of the moon requires a satellite, China sent the Queqiao relay satellite toward the moon on May 20, 2018.

Queqiao-relay-satellite

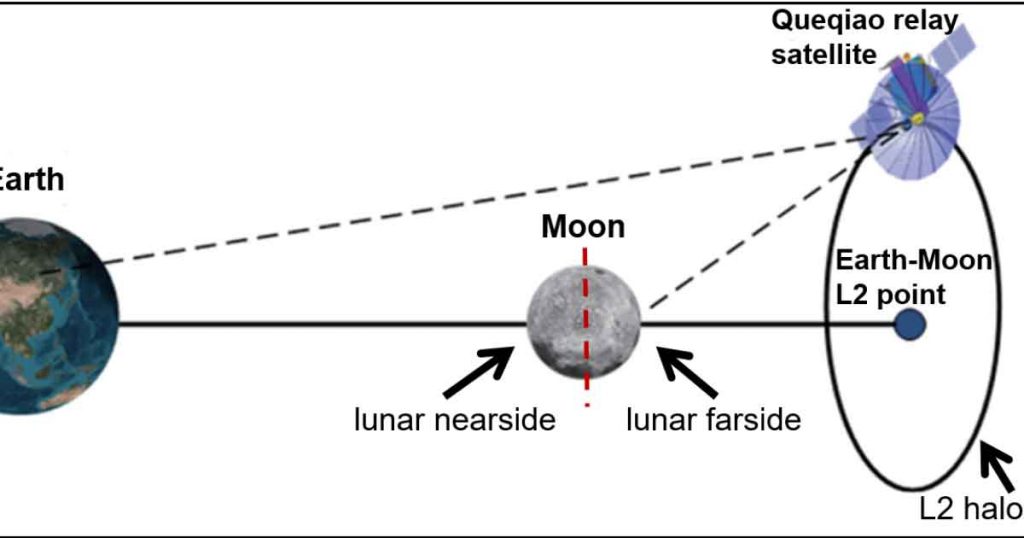

The Queqiao acts as a relay for the pictures and data for the Chang’e 4 mission

The far side of the moon permanently faces away from Earth, so Queqiao acts as a relay for the pictures and data that the Chang’e 4 mission transmits back to Earth. Queqiao is stationed at a gravitationally stable spot called Earth-moon Lagrange point-2, which is roughly 40,000 miles (64,000 kilometers) away from the moon’s far side.

Chang’e 4 To the Far Side of the Moon

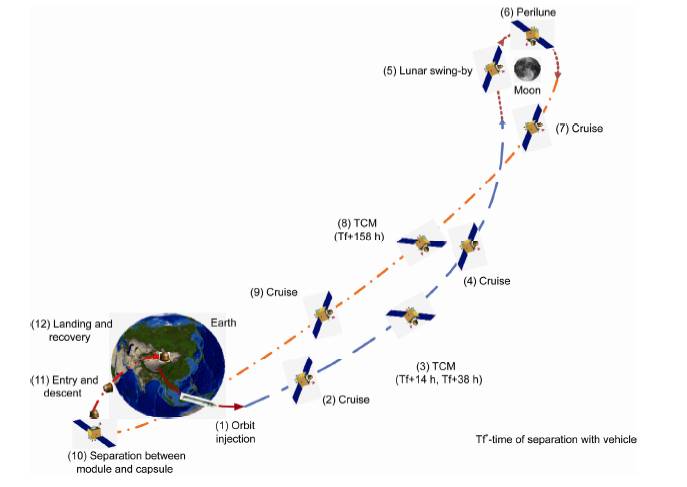

CHINA-MOON-TRAJECTORY-JPG
Moon trajectory

Chang’e 4 descended into history Jan 2nd, 2019, when it made a safe touchdown on the far side of the moon. The spacecraft landed in Von Kármán Crater, taking pictures of its gentle fall using a descent camera.

The lander and its rover work together to learn more about the moon’s radiation environment, surface and subsurface. They also do radio astronomy, as well as a small biosphere experiments.

Chang'e-4-images-4

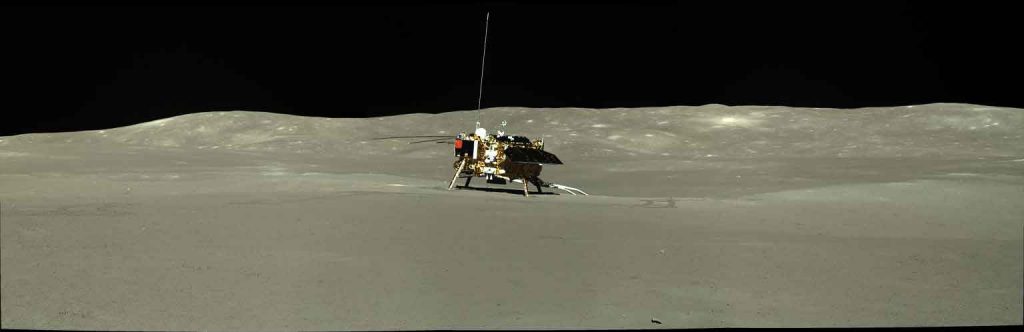

Images of the far side of the moon from Change ‘4 showed a dusty environment
Chang'e-4-images
Images of the far side of the moon from Change ‘4 showed a dusty environment
Chang'e-4-images-3
Images of the far side of the moon from Change ‘4 showed a dusty environment

Early images of the far side of the moon from Change ‘4 showed a dusty environment which the mission explored with the rover Yutu 2. The far side is a more rugged environment in general than the near side, since tidal erosion has been pulling on the moon’s near side and smoothing out the features there for eons. However, there are zones on the far side that are safe enough for lunar landings.

Source: Space.com
